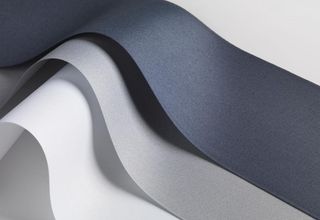

Fabric properties
Semi transparent
Polyester
275 g/m²
0.47 mm
8.9 cm, 12.7 cm
Features / Technical properties
4-5
Alpha-w = 0.60
Flame retardant
Applicable in humid areas
Special colours from 5’000 m
Washing instructions
Optical and solar coefficients (± 5%, DIN EN 410)
| Colour |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|

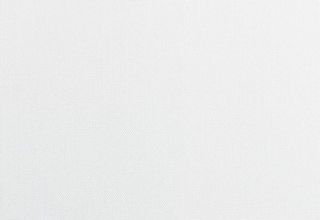

| Colour 01 | Tv(%) 32.3 | Ts(%) 31.4 | Rs(%) 63.8 | As(%) 4.8 | Tuv(%) 18.3 | Fc() 0.54 | gtot() 0.39 |

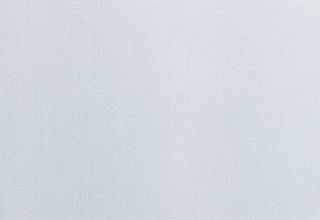

| Colour 03 | Tv(%) 24.2 | Ts(%) 28.1 | Rs(%) 62.2 | As(%) 9.7 | Tuv(%) 15.4 | Fc() 0.54 | gtot() 0.39 |

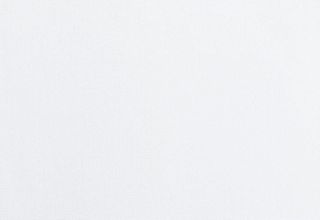

| Colour 13 | Tv(%) 25.3 | Ts(%) 26.7 | Rs(%) 67.3 | As(%) 6.0 | Tuv(%) 15.0 | Fc() 0.51 | gtot() 0.37 |

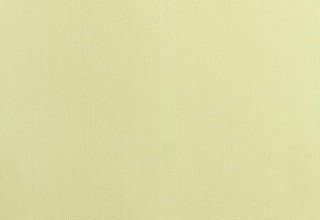

| Colour 16 | Tv(%) 26.2 | Ts(%) 25.9 | Rs(%) 60.6 | As(%) 13.5 | Tuv(%) 8.0 | Fc() 0.55 | gtot() 0.40 |

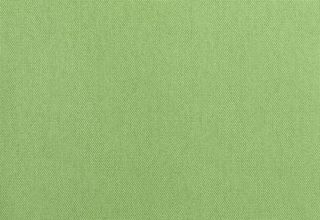

| Colour 26 | Tv(%) 9.8 | Ts(%) 19.3 | Rs(%) 48.7 | As(%) 32.0 | Tuv(%) 4.9 | Fc() 0.62 | gtot() 0.45 |

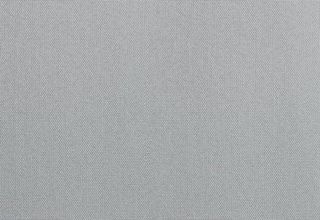

| Colour 29 | Tv(%) 11.8 | Ts(%) 22.7 | Rs(%) 50.8 | As(%) 26.5 | Tuv(%) 8.0 | Fc() 0.61 | gtot() 0.44 |

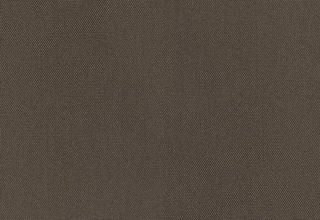

| Colour 54 | Tv(%) 3.6 | Ts(%) 18.4 | Rs(%) 37.9 | As(%) 43.7 | Tuv(%) 3.9 | Fc() 0.69 | gtot() 0.50 |

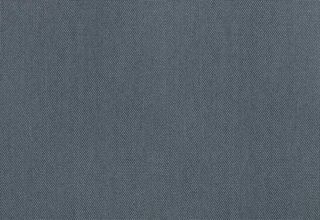

| Colour 72 | Tv(%) 4.1 | Ts(%) 19.3 | Rs(%) 38.6 | As(%) 42.1 | Tuv(%) 4.6 | Fc() 0.69 | gtot() 0.50 |
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1
Downloads
On request:
Class 1 (UNI 9176/77)

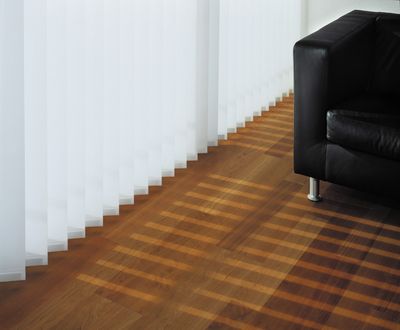

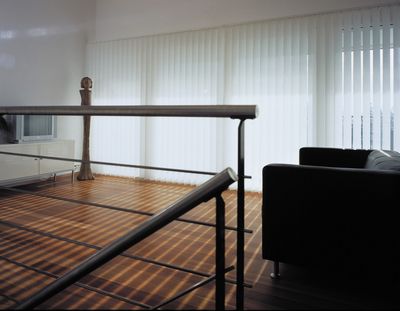

Inspiration
